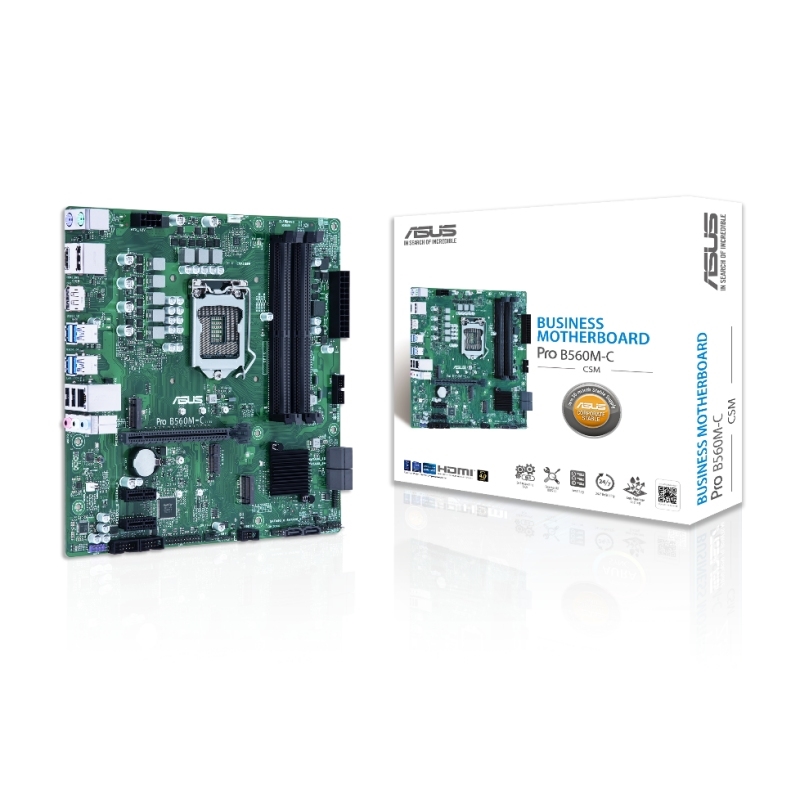

| Marca | Asus |
| Modelo | 90MB1720-M0EAYC |
| Plataforma | – mATX (24.4cm x 24.4 cm) |
| Chipset | – B560 |
| CPU Soportados |
– Admite procesadores Intel® Core™, Pentium® Gold y Celeron® de 11ª y 10ª generación para zócalo LGA1200 |
| Memoria | – DDR4 4600(OC)/4400(OC)/4266(OC)/4000(OC)//3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory – Dual Channel Memory Architecture – Supports Intel® Extreme Memory Profile (XMP) – OptiMem |
|
Slots Expansión
|
– 1 x PCIe 4.0/3.0 x16 slot – 2 x PCIe 3.0 x1 slots |
| Gráficos | – 2 x DisplayPort 1.4 – 1 x HDMI 2.0 |
|
Puertos E/S,
Conectores
|
Conectores Internos E/S
– 1 x 4-pin CPU Fan header – 2 x 4-pin Chassis Fan headers – 1 x 24-pin Main Power – 1 x 8-pin +12V Power – 2 x M.2 slots (Key M) – 6 x SATA 6Gb/s ports – 1 x USB 3.2 Gen 1 – 1 x USB 2.0 – 1 x USB 2.0 – 1 x Clear CMOS header – 1 x Chassis Intrude header – 2 x COM Port headers – 1 x Front Panel Audio header (AAFP) – 1 x COM debug header – 1 x LPT header – 1 x Mono-out header(with Amp IC) – 1 x SMBUS header – 1 x Speaker header – 1 x SPI TPM header (14-1pin) – 1 x 10-1 pin System Panel header Panel E/S Trasero – 4 x USB 3.2 Gen 1 (4 x Type-A) – 2 x USB 2.0 (2 x Type-A) – 2 x DisplayPort – 1 x HDMI – 1 x M.2 slot (Key E) – 1 x Intel® I219V 1Gb Ethernet – 3 x Audio jacks – 1 x PS/2 keyboard – 1 x PS/2 mouse |
|
Otras
Características
|
Audio – Realtek® 7.1-Channel Audio LAN – 1 x Intel® I219-V 1Gb Ethernet – Asus LANGuard Almacenamiento – 2 x M.2 slot (Key M), type 2242/2260/2280 (PCIe 3.0 x4 & SATA modes) – 6 x SATA 6Gb/s USB – 4 x USB 3.2 Gen 1 – 2 x USB 2.0 – 1 x USB 3.2 Gen 1 – 1 x USB 2.0 – 1 x USB 2.0 Sistema Operativo – Soporte para Windows 10 64-bit |
| Fecha Revisión | 27-04-2021 por MSB |
